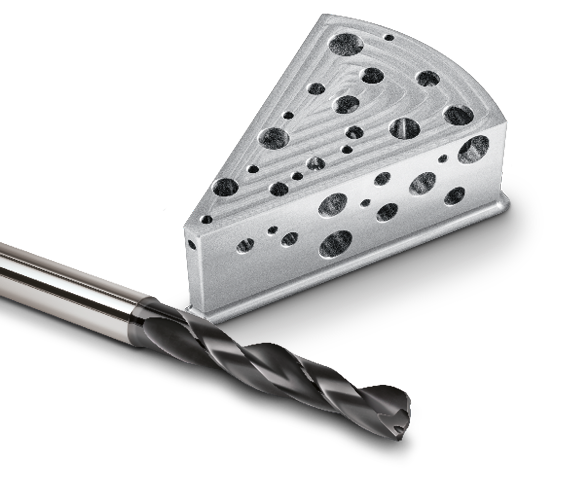

Supradrill® spiral flute drill – the universal high-performance drill for maximum productivity
Up to 30 % more productivity thanks to increased performance
Less micro chipping thanks to stable cutting edge
Consistent quality under changing conditions
Reliable chip flow – even with tough material
Plug-and-play start with validated cutting data in FRAISA ToolExpert®
Sustainable service offers with FRAISA ReTool®Services
Here the Supradrill® shows what it's made of: it combines innovation with precisely tested cutting data from the FRAISA ToolExpert®. The result is a drilling quality that impresses even in demanding situations – clean, stable and impressively reproducible, even with cross holes, breakthroughs in existing holes, angled holes or complex penetration points.
More productive, more efficient drilling processes
The new generation of our Supradrill® sets new standards in universal, reliable machining. Its advanced micro and macro geometry has been specifically designed to reliably master demanding drilling processes – from unstable components to difficult application situations and challenging process conditions.
Best results in demanding applications and materials
Whether you have tough materials with resulting built-up edges, solidifying materials or long bores with critical chip removal, the new generation of the Supradrill® brings noticeable process relief. And the results are impressive across the board: stable, reliable processes, high-quality drilling, clean and dimensionally accurate holes with sustainable economic performance across a wide range of applications.
The advantages:
Lower tool costs thanks to a wide range of applications and significantly fewer tool change
High drilling quality with precise, dimensionally accurate results
High universality – reliable in steel to rust and acid-resistant materials
Extensive program: 5×d, Ø 3-20 mm, in practical 0.1 mm increments
All core hole diameters covered: assortment with 183 dimensions
Optimal for automated production thanks to stable process and validated plug-and-play cutting data

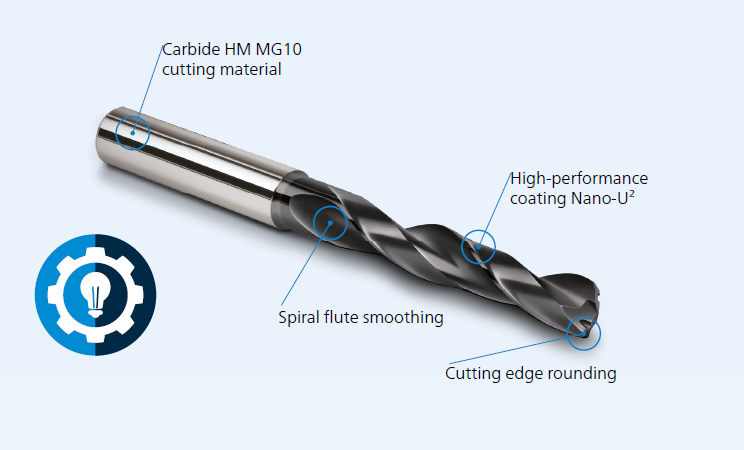

Technologies

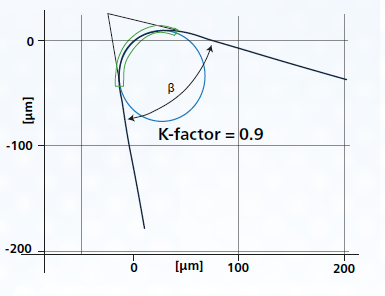

The newly defined cutting edge rounding reinforces the cutting wedge precisely in the highest load zone, distributes the forces optimally and significantly reduces micro chipping. The result is robust and reliable cutting behavior with an expanded, universal field of application.
More productive, more efficient drilling processes, thanks to precisely optimized tool geometry
With the new Supradrill®-generation, FRAISA has developed an innovative process that enables precisely defined, dimension-dependent cutting edge rounding and a perfectly smoothed flute.
The newly defined cutting edge rounding reinforces the cutting wedge precisely in the highest load zone, distributes the forces optimally and significantly reduces micro chipping. The result is robust and reliable cutting behavior with an expanded, universal field of application.
The perfectly polished flute minimizes friction and ensures a stable, controlled chip flow – even in tough materials with changing chip conditions or large drilling depths.
Maximum performance

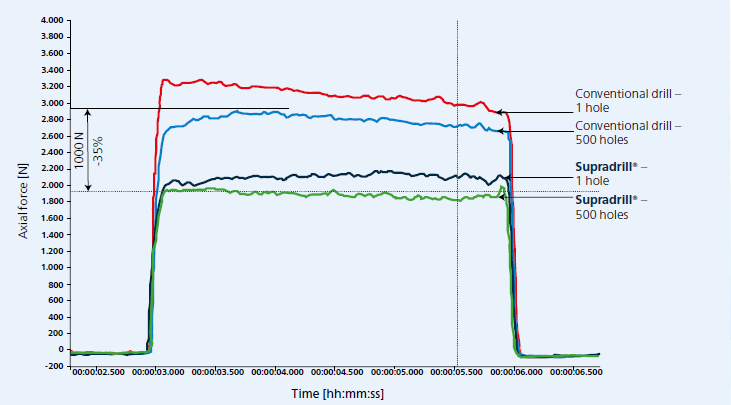

Together, cutting edge rounding and flute smoothing significantly reduce the cutting forces in the drilling process. This allows significantly higher cutting data to be selected, which leads directly to higher productivity and noticeably better energy efficiency.
The FRAISA Nano-U² coating further expands this potential. The high-performance coating developed in-house offers a wide speed and load window and impresses with its high thermal load capacity and uniform, predictable wear behavior.
In combination with the ultra-fine grain carbide HM MG10, the result is an exceptionally robust drilling tool, perfectly balanced between hardness and toughness.
Reliable applications thanks to plug-and-play cutting data
Optimally coordinated cutting data is available in FRAISA ToolExpert® for all 183 diameters of the Supradrill®. Each recommendation is based on extensive test series in a wide range of materials – developed, validated, and precisely fine-tuned so you can get started safely right away.
This results in stable, reliable processes and efficient, reliable machining. Our application engineers provide additional support in selecting the right strategy to ensure that each tool develops its full potential.

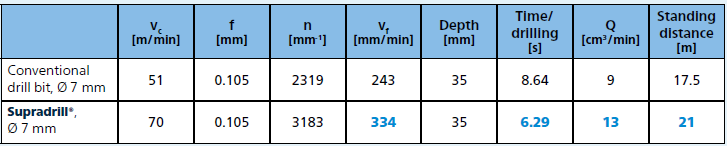

30% higher productivity with optimal cutting data from FRAISA ToolExpert®
With the right cutting data, you can increase your productivity by up to 30% and measurably reduce your energy consumption.
Example: Holes in material 1.2379/ X153CrMoV12 (850 N/mm2).
Parameters vary depending on the material – please use ToolExpert.

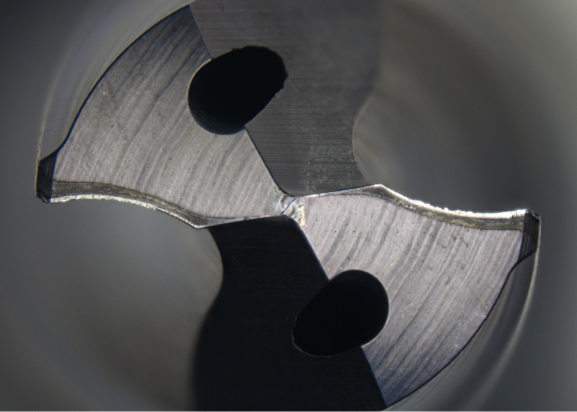

Conventional drill
After 500 drill holes

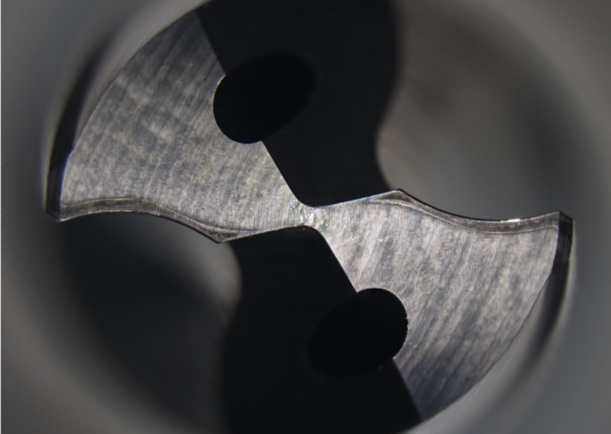

Supradrill®
After 600 drill holes
FRAISA ToolExpert® – get started and test right away:
select material, application and tool and obtain optimum cutting data.
